Chauffe-eau Ariston SAGEO XP 200 STAB 570 MO EU (2024) Ref 3000763



page 2
Pièces détachées Chauffe-eau Ariston SAGEO XP 200 STAB 570 MO EU (2024) Ref 3000763 chez Pièces Express


Référence fabricant
Position Schéma

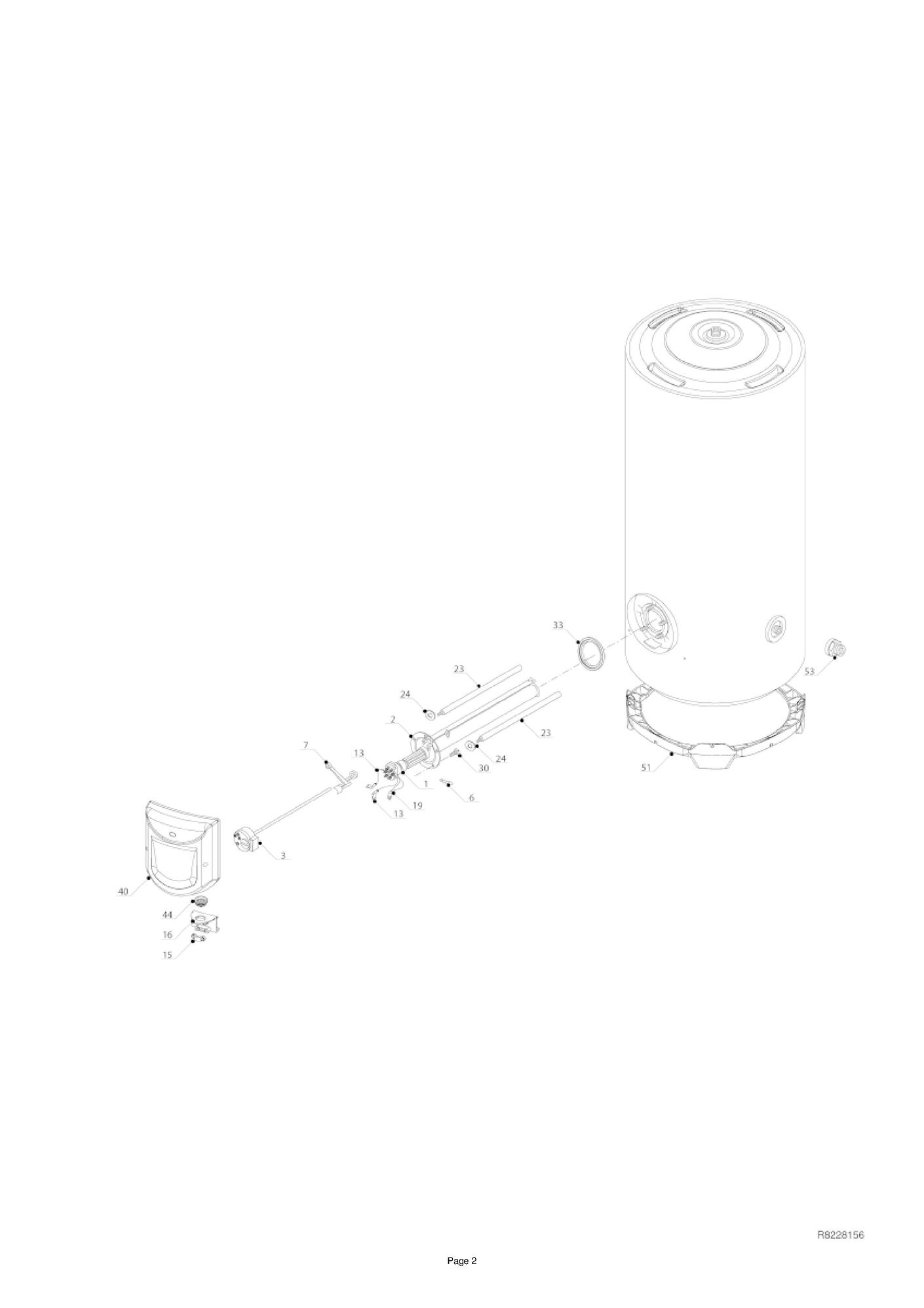

Les images des vues éclatées peuvent contenir des prix datant de plusieurs années, merci de ne pas en tenir compte










Pièces détachées contenues dans cet appareil Chauffe-eau Ariston SAGEO XP 200 STAB 570 MO EU (2024) Ref 3000763



Photo Position vue éclatée Article Référence fabricant Disponibilité et prix
Resistance steatite 3000w 230v/380v Ariston 60003127
1 page 2 Resistance steatite 3000w 230v/380v
Code article PEX: 422991
Ariston
Réf fabricant: 60003127
en stock
72,23 € TTC
Embase steatite d.105 (+ joint) Ariston 60002696-01
2 page 2 Embase steatite d.105 (+ joint)
Code article PEX: 541771
Ariston
Réf fabricant: 60002696-01
en stock
129,95 € TTC
Thermostat a canne l:450 Ariston 60001544
3 page 2 Thermostat a canne l:450
Code article PEX: 209014
Ariston
Réf fabricant: 60001544
en stock
45,83 € TTC
6 page 2 Patte de fixation resistance

Ariston
Réf fabricant: 6500594000
avec délai
sur devis
Support thermostat Ariston 60001560
7 page 2 Support thermostat
Code article PEX: 209030
Ariston
Réf fabricant: 60001560
± 3 jours ouvrés
12,80 € TTC
Wiring (element) Ariston 65119465
13 page 2 Wiring (element)
Code article PEX: 485949
Ariston
Réf fabricant: 65119465
± 3 jours ouvrés
6,01 € TTC
13 page 2 Cablage 2,5x180 (vert)

Ariston
Réf fabricant: 65119910
avec délai
sur devis
15 page 2 Bloque cable

Ariston
Réf fabricant: 6500781400
avec délai
sur devis
16 page 2 Support bloque cable

Ariston
Réf fabricant: 6500786400
avec délai
sur devis
Lampe temoin Ariston 60000802
19 page 2 Lampe temoin
Code article PEX: 208468
Ariston
Réf fabricant: 60000802
en stock
6,58 € TTC
Anode d:21,3 l:430 m5-m8 Ariston 61402252-01
23 page 2 Anode d:21,3 l:430 m5-m8
Code article PEX: 214858
Ariston
Réf fabricant: 61402252-01
en stock
26,58 € TTC
Rondelle Ariston 65118016
24 page 2 Rondelle
Code article PEX: 424192
Ariston
Réf fabricant: 65118016
± 3 jours ouvrés
2,68 € TTC
Vis h m8-14 Ariston 61005231
30 page 2 Vis h m8-14
Code article PEX: 212291
Ariston
Réf fabricant: 61005231
en stock
2,39 € TTC
Joint bride d 105 Ariston 60002697
33 page 2 Joint bride d 105
Code article PEX: 308271
Ariston
Réf fabricant: 60002697
en stock
3,82 € TTC
Capot blanc Ariston 60002703
40 page 2 Capot blanc
Code article PEX: 308277
Ariston
Réf fabricant: 60002703
± 3 jours ouvrés
30,77 € TTC
Embout passe cable Ariston 926044
44 page 2 Embout passe cable
Code article PEX: 221986
Ariston
Réf fabricant: 926044
± 3 jours ouvrés
2,39 € TTC
Support d:570 Ariston 60002411
51 page 2 Support d:570
Code article PEX: 308153
Ariston
Réf fabricant: 60002411
± 3 jours ouvrés
37,48 € TTC
53 page 2 Raccords dielectriques 3/4 mf

Ariston
Réf fabricant: 60003585
avec délai
sur devis


Dans cette page vous trouverez l'ensemble des articles et pièces détachées de chaufferie qui composent la nomenclature Chauffe-eau Ariston SAGEO XP 200 STAB 570 MO EU (2024) Ref 3000763 ainsi que des liens vers les articles Ariston. En parcourant la page Ariston, vous pourrez également trouver toutes les pièces Ariston présentes chez Pièces Express. L'indication de stock vous permet de savoir si la pièce détachée est disponible dans notre stock central ou bien avec un délai fournisseur. Dans ce dernier cas, renseignez vous, nous commandons très régulièrement chez chacun de nos fournisseurs, nous pouvons donc certainement répondre à votre besoin rapidement.
