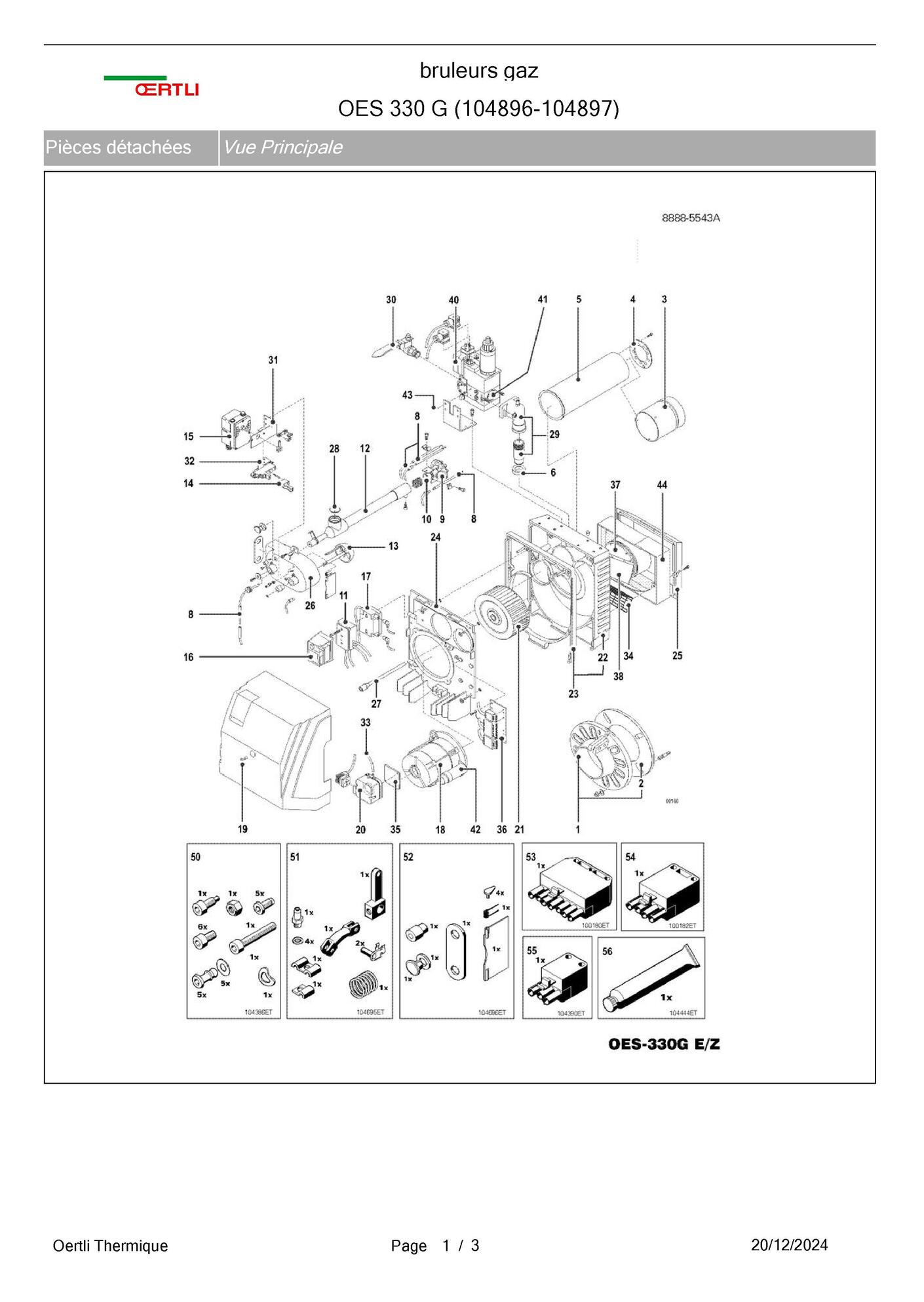

Brûleur Oertli OES 330 G (104896-104897) (88885543)



OERTLI propose des nomenclatures qui peuvent contenir plusieurs modèles différents en rapport avec la puissance et la date de fabrication. Pour déterminer le modèle et la référence exacts, nous vous conseillons de télécharger et d’ouvrir le PDF ou de nous contacter muni de la référence du modèle indiquée sur votre plaque signalétique. Sur le site PiecesXPress, en haut à droite, vous trouverez la sélection 'Demande de prix'.
page 1
Pièces détachées Brûleur Oertli OES 330 G (104896-104897) (88885543) chez Pièces Express


Référence fabricant
PositionSchéma
111942Bride fixation bruleur +joint1
140993Joint isoplan d.260x123x82
104994S/e tube de flamme d.1203
104998S/e plaque d injecteur4
104997S/e plaque d injecteur4
104996S/e plaque d injecteur4
104995S/e plaque d injecteur4
104715Tube interm.court5
104716Tube interm.long5
104728Joint 45 x 33 x 10 (x5)6
104718Rampe gaz mb-dle 407 b01 s207
104717Vanne gaz mb-zrdle 407 b01s207
104721Vanne gaz mb-zrdle 412 ...7
105965Electrode d allumage+ sonde ionisation8
104999Set diffuseur gaz g30 4s9
105000Set diffuseur gaz g30 5s9
105001Set diffuseur gas g306/7s9
105002Set diffuseur gaz g308/9s9
104690Kit joints toriques10
130792Socle cablee 2 allure11
130765Socle cablee11
130791Socle cablee 1 allure11
105005Socle cable oes11
105004Socle cable oes11
104692Set ligne gaz cpl court12
104693Set ligne gaz cpl long12
103531Cone13
130345Relais moteur14
102679Relais puissance14
103527Servomoteur sta3b 1.37/6 2n35l15
106321Coffret de securite dmg 97116
105112Coffret de securite mmi 811.1 mod.6316
012103Rallonge rearmement16
101653Transformateur em 40/1517
103310Moteur 260w18
103312Moteur 380w18
104354Moteur 600w18
105416Capot19
104700Pressostat air lgw 30-a220
103324Turbine ventilateur 180 x 7021
104364Turbine ventilateur 180 x 9021
105650Carter spirale22
105651Carter spirale + module23
105412Platine porte-composant24
102656Caisson d air25
105968Boitier air26
105414Tige fixation capot27
104690Kit joints toriques28
104531Bride gaz (g32-8/9s (20mbar)29
104538S/e bride29
105652Robinet gaz 3/4 (pour bloc gaz mb 407)30
105653Robinet gaz avec bride 1"30
103365Support servo-moteur31
130784Support relais finder32
104269Support relais auxiliaire32
078123Tube neoprene d.7x4 noir33
105357Grille sur entree dair34
104574Support pressostat 56 x 66 ...35
091181Support connecteur36
102174Directeur d air37
103918Plaque directeur d air38
102731Plaque directeur d air38
103245Plaque directeur d air38
091524Support de vanne (g30-8/9s ...39
105655Pressostat gaz gw50 a2 remplacé par a540
105657Joint toriq. mb-zrdle 40741
105658Joint toriq. mb-zrdle 412 (sachet 2 pcs)41
105660Condensateur 12f-420v-470v42
105661Condensateur 16f- 420v-470v42
105659Condensateur 8f -420v- 470v42
105833Set vis fix.rampe gaz43
108397Set module accoustique44
104386Sachet visserie50
104695Kit accessoires51
104696Kit accessoires52
100180Connecteur 7 plots53
100182Connecteur male 4pl.wieland54
104390Prise wieland 3plots55
104444Graisse haute temperature tube 30g56


Les images des vues éclatées peuvent contenir des prix datant de plusieurs années, merci de ne pas en tenir compte










Pièces détachées contenues dans cet appareil Brûleur Oertli OES 330 G (104896-104897) (88885543)



PhotoPosition vue éclatéeArticleRéférence fabricantDisponibilité et prix
1 page 1Bride fixation bruleur ...

Oertli
Réf fabricant: 111942
2 page 1Joint bride d.260 x 123 x 8

Oertli
Réf fabricant: 140993
3 page 1Tube de flamme oes330g

Oertli
Réf fabricant: 104994
4 page 1S/e plaque injecteur

Oertli
Réf fabricant: 104998
4 page 1S/e plaque injecteur

Oertli
Réf fabricant: 104997
4 page 1S/e plaque injecteur

Oertli
Réf fabricant: 104996
4 page 1S/e plaque injecteur

Oertli
Réf fabricant: 104995
5 page 1Tube intermediaire court ...

Oertli
Réf fabricant: 104715
5 page 1Tube intermediaire long ...

Oertli
Réf fabricant: 104716
6 page 1Joint 45 x 33 x 10 (x5)

Oertli
Réf fabricant: 104728
7 page 1Rampe gaz mb-dle 407 b01 s20

Oertli
Réf fabricant: 104718
7 page 1Vanne gaz mb-zrdle 407 ...

Oertli
Réf fabricant: 104717
7 page 1Vanne gaz mb-zrdle 412 ...

Oertli
Réf fabricant: 104721
avec délai
sur devis
8 page 1Electrode allum.+sonde ...

Oertli
Réf fabricant: 105965
9 page 1S/e tete de gaz oes 331 g

Oertli
Réf fabricant: 104999
9 page 1S/e tete de gaz oes 332 g

Oertli
Réf fabricant: 105000
9 page 1S/e tete de gaz oes 333 g

Oertli
Réf fabricant: 105001
9 page 1S/e tete de gaz oes 334 g

Oertli
Réf fabricant: 105002
10 page 1Kit joints toriques

Oertli
Réf fabricant: 104690
11 page 1Socle avec cablage oes ...

Oertli
Réf fabricant: 130792
11 page 1Socle avec cablage oes 334 ...

Oertli
Réf fabricant: 130765
11 page 1Socle cable 1 allure

Oertli
Réf fabricant: 130791
11 page 1Socle cable oes

Oertli
Réf fabricant: 105005
11 page 1Socle cable oes

Oertli
Réf fabricant: 105004
12 page 1Ligne gaz ...

Oertli
Réf fabricant: 104692
12 page 1Tube de gaz

Oertli
Réf fabricant: 104693
13 page 1S/e sphere de reglage oes ...

Oertli
Réf fabricant: 103531
14 page 1Relais moteur

Oertli
Réf fabricant: 130345
14 page 1Relais puissance g33-9n

Oertli
Réf fabricant: 102679
15 page 1Servomoteur sta3b 1.37/6 ...

Oertli
Réf fabricant: 103527
16 page 1Coffret de securite dmg 971

Oertli
Réf fabricant: 106321
avec délai
sur devis
16 page 1Coffret de securite mmi ...

Oertli
Réf fabricant: 105112
16 page 1Rallonge rearmement

Oertli
Réf fabricant: 012103
17 page 1Transformateur allumage ...

Oertli
Réf fabricant: 101653
18 page 1Moteur 260w

Oertli
Réf fabricant: 103310
18 page 1Moteur 380w

Oertli
Réf fabricant: 103312
18 page 1Moteur 600w

Oertli
Réf fabricant: 104354
avec délai
sur devis
19 page 1Capot

Oertli
Réf fabricant: 105416
avec délai
sur devis
20 page 1Pressostat air lgw 30-a2

Oertli
Réf fabricant: 104700
avec délai
sur devis
21 page 1Turbine oes 332/333/334

Oertli
Réf fabricant: 103324
21 page 1Turbine oes 335

Oertli
Réf fabricant: 104364
22 page 1Spirale

Oertli
Réf fabricant: 105650
23 page 1Carter spirale + module

Oertli
Réf fabricant: 105651
avec délai
sur devis
24 page 1Platine porte-composant

Oertli
Réf fabricant: 105412
avec délai
sur devis
25 page 1Caisson dair oen/oes ...

Oertli
Réf fabricant: 102656
26 page 1Boitier air

Oertli
Réf fabricant: 105968
27 page 1Tige fixation capot

Oertli
Réf fabricant: 105414
avec délai
sur devis
28 page 1Kit joints toriques

Oertli
Réf fabricant: 104690
29 page 1Bride gaz (g32-8/9s (20mbar)

Oertli
Réf fabricant: 104531
avec délai
sur devis
29 page 1S/e bride oes 331/2/3g e/z

Oertli
Réf fabricant: 104538
30 page 1Robinet gaz 3/4" (pour ...

Oertli
Réf fabricant: 105652
30 page 1Robinet gaz avec bride 1"

Oertli
Réf fabricant: 105653
avec délai
sur devis
31 page 1Support servo-moteur

Oertli
Réf fabricant: 103365
avec délai
sur devis
32 page 1S/e support relais g303-5n

Oertli
Réf fabricant: 130784
32 page 1Support relais auxiliaire

Oertli
Réf fabricant: 104269
avec délai
sur devis
33 page 1Tube neoprene d.7x4 noir

Oertli
Réf fabricant: 078123
34 page 1Grille sur entree dair

Oertli
Réf fabricant: 105357
avec délai
sur devis
35 page 1Support pressostat 56 x 66 ...

Oertli
Réf fabricant: 104574
avec délai
sur devis
36 page 1Support connecteur

Oertli
Réf fabricant: 091181
avec délai
sur devis
37 page 1Directeur dair

Oertli
Réf fabricant: 102174
38 page 1Plaque directeur dair ...

Oertli
Réf fabricant: 103918
38 page 1Plaque directeur dair 144 ...

Oertli
Réf fabricant: 102731
38 page 1Plaque directeur dair 144 ...

Oertli
Réf fabricant: 103245
39 page 1Support de vanne (g30-8/9s ...

Oertli
Réf fabricant: 091524
avec délai
sur devis
40 page 1Pressostat gaz gw 50a2

Oertli
Réf fabricant: 105655
41 page 1Joint torique oes330g

Oertli
Réf fabricant: 105657
41 page 1O-ring

Oertli
Réf fabricant: 105658
42 page 1Condensateur 12µf-420v-470v

Oertli
Réf fabricant: 105660
42 page 1Condensateur 16µf- 420v-470v

Oertli
Réf fabricant: 105661
42 page 1Condensateur 8µf -420v- 470v

Oertli
Réf fabricant: 105659
43 page 1Set vis fix.rampe gaz

Oertli
Réf fabricant: 105833
avec délai
sur devis
44 page 1Set module accoustique

Oertli
Réf fabricant: 108397
50 page 1Set visserie

Oertli
Réf fabricant: 104386
51 page 1Materiel special oen 330 ge

Oertli
Réf fabricant: 104695
52 page 1Materiel special oen /oes ...

Oertli
Réf fabricant: 104696
53 page 1Connecteur male 7 plots

Oertli
Réf fabricant: 100180
54 page 1Connecteur male 4pl.wieland

Oertli
Réf fabricant: 100182
avec délai
sur devis
55 page 1Fiche multiple 3 plots

Oertli
Réf fabricant: 104390
56 page 1Graisse haute temperature ...

Oertli
Réf fabricant: 104444


Dans cette page vous trouverez l'ensemble des articles et pièces détachées de chaufferie qui composent la nomenclature Brûleur Oertli OES 330 G (104896-104897) (88885543) ainsi que des liens vers les articles Oertli. En parcourant la page Oertli, vous pourrez également trouver toutes les pièces Oertli présentes chez Pièces Express. L'indication de stock vous permet de savoir si la pièce détachée est disponible dans notre stock central ou bien avec un délai fournisseur. Dans ce dernier cas, renseignez vous, nous commandons très régulièrement chez chacun de nos fournisseurs, nous pouvons donc certainement répondre à votre besoin rapidement.
